Manifold Vac Solvnt Transf
Item No.
50041659

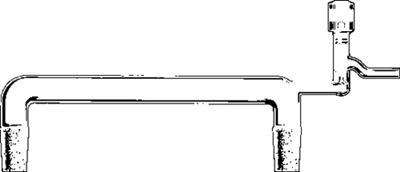

SOLVENT TRANSFER MANIFOLD This manifold is designed for the purification and transfer of solvents under airless conditions. • The manifold allows the vacuum transfer of solvent at room temperature from a boiling flask with a vacuum valve directly into an evacuated solvent storage flask •
Description
SOLVENT TRANSFER MANIFOLD
This manifold is designed for the purification and transfer of solvents under airless conditions.
• The manifold allows the vacuum transfer of solvent at room temperature from a boiling flask with a vacuum valve directly into an evacuated solvent storage flask
• Solvent is then cooled to a low temperature with liquid nitrogen or dry ice/acetone
• Manifold incorporates a HI-VAC® valve with an 826601-0004 plug and 3/8” ground connection
• Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements
Overall Height (mm) : 140
Overall Width (mm) : 380
Standard Taper Joints : 24/40
Case Qty : 1
Item Info:
| Item Title | Manifold Vac Solvnt Transf |
| Category: | Equipment |
| Sales Unit of Measure | EA1 |
| Last Date/Time Modified | 2/20/2025 2:37:01 PM |
