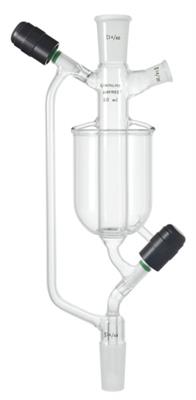

Funnel, Cold Addition, 50mL, Airfree®, Top Joint 2

FUNNELS, COLD ADDITION, AIRFREE, SCHLENK

Used in the preparation of block copolymers or any chemical synthesis requiring high vacuum techniques. Funnel features a large diameter ring seal between the coolant container and the addition funnel body thereby reducing stress and permitting for use of a wide range of coolants, from ice-water to liquid nitrogen. The open cup design of the coolant chamber allows for easy addition of coolant, particularly dry ice chunks, without the annoying ”blow-back” associated with other funnel designs.

Constructed using grease-free 0-4mm Chem-Vac™ Chem-Cap® valves on the pressure equalizing arm and lower inner joint. Positioning of the valves permits the funnel contents to be kept under inert conditions prior to use or during loading. A 14/20 outer joint is sealed on the funnel body just above the coolant chamber for use with CG-3022 or CG-3024 septum stoppers for syringe sampling of the funnel contents. Funnel has a drain tube on the rear of the coolant chamber.

** Designed and Developed By: William J. Swatos and Barton J. Schober, Department Of Materials Science & Engineering, Polymer Science Program, Penn State University
